Advanced Feature

Snap has various optional parameters. These optional parameters can be utilized for more advanced use cases that can help your integration.

General


Recommended Parameters


You can include more information such as customer_details, item_details, and so on along side transaction_details. While sending API requests, it is recommended to send more details regarding the transaction, so that these details will be captured on the transaction record which can be viewed on the Midtrans Dashboard.

The recommended JSON parameters for general use are given below. These parameters are used during backend API request step.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "credit_card": {
    "secure": true
  },
  "item_details": [
    {
      "id": "a01",
      "price": 7000,
      "quantity": 1,
      "name": "Apple"
    },
    {
      "id": "b02",
      "price": 3000,
      "quantity": 2,
      "name": "Orange"
    }
  ],
  "customer_details": {
    "first_name": "Budi",
    "last_name": "Susanto",
    "email": "[email protected]",
    "phone": "+628123456789",
    "billing_address": {
      "first_name": "Budi",
      "last_name": "Susanto",
      "email": "[email protected]",
      "phone": "08123456789",
      "address": "Sudirman No.12",
      "city": "Jakarta",
      "postal_code": "12190",
      "country_code": "IDN"
    },
    "shipping_address": {
      "first_name": "Budi",
      "last_name": "Susanto",
      "email": "[email protected]",
      "phone": "0812345678910",
      "address": "Sudirman",
      "city": "Jakarta",
      "postal_code": "12190",
      "country_code": "IDN"
    }
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "credit_card": {
    "secure": true
  },
  "item_details": [
    {
      "id": "a01",
      "price": 7000,
      "quantity": 1,
      "name": "Apple"
    },
    {
      "id": "b02",
      "price": 3000,
      "quantity": 2,
      "name": "Orange"
    }
  ],
  "customer_details": {
    "first_name": "Budi",
    "last_name": "Susanto",
    "email": "[email protected]",
    "phone": "+628123456789",
    "billing_address": {
      "first_name": "Budi",
      "last_name": "Susanto",
      "email": "[email protected]",
      "phone": "08123456789",
      "address": "Sudirman No.12",
      "city": "Jakarta",
      "postal_code": "12190",
      "country_code": "IDN"
    },
    "shipping_address": {
      "first_name": "Budi",
      "last_name": "Susanto",
      "email": "[email protected]",
      "phone": "0812345678910",
      "address": "Sudirman",
      "city": "Jakarta",
      "postal_code": "12190",
      "country_code": "IDN"
    }
  }
}'

For more details, refer to Snap Docs.

You can also add fee, tax, discount, etc. to item_details if you need.

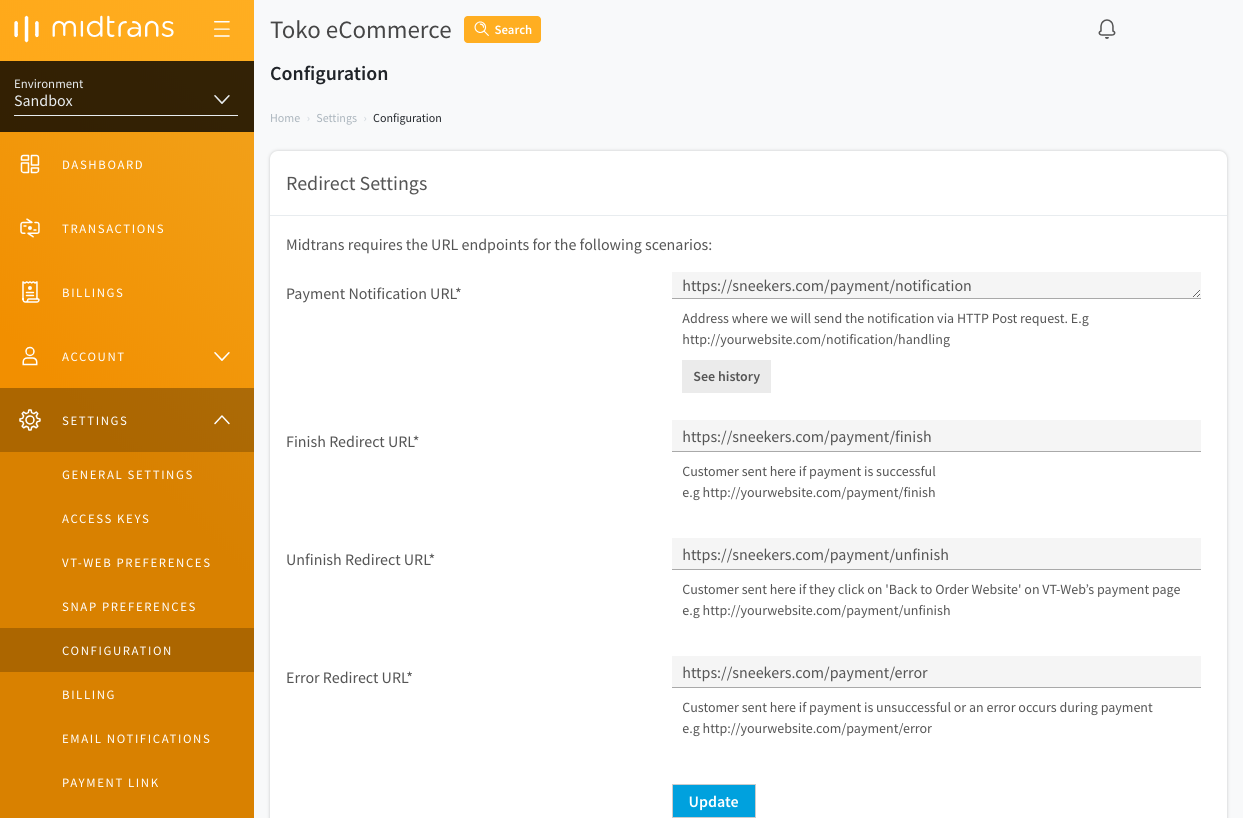

Configuring Redirect URL

Redirect URL is used to redirect your customer after the payment process is complete through Snap.


Snap Popup (Default)


This is the default method. In this method, payment page is embedded in merchant website/app. To set your redirect URL, in pop-up mode, go to Settings - Snap Preference - System Settings.



The diagram given below explains the working of redirect URL.



Snap Redirect


In this method, the customer will be redirected to Midtrans hosted payment page. To set your redirect URL in redirect mode, go to Settings - Snap Preference - System Settings.



The diagram given below explains the working of redirection URLs.


πŸ“˜

Note

The final redirect URL is appended with query parameter like ?order_id=xxx&status_code=xxx&transaction_status=xxx.


The final redirect URL may look like this: https://tokoecommerce.com/finish_payment/?order_id=CustOrder-102123123&status_code=200&transaction_status=capture.


You may use this information to display custom message to your customer on your finish URL.


🚧

Specific if the payment method is Credit Card & processed via 3DS 2 (when the acquiring bank and the MID support), there's small possibility of the transaction is still waiting for the card's 3DS provider to process/verify it, which then Snap will trigger redirect with ?transaction_status=pending instead of capture/settlement. To handle the payment success update, as usual you should handle HTTP Notification.




Snap.js Function and Options


Snap.js supports various useful options, such as specifying language, specifying GoPay payment mode to deeplink, and so on. You can use these options according to your requirement.

For more details, refer to Snap Docs.


πŸ“˜

Note

If you are using Snap Redirect mode, you can append options as Query parameter at the end of the Snap redirect_url:


[redirect_url]?[options1]=[value]&[options2]=[value]

Which for example (using both language=en & gopayMode=deeplink options) the final result URL is shown below.



https://app.sandbox.midtrans.com/snap/v2/vtweb/cf9534e3-ddf7-43f9-a1b7-5f618d2d1c96?language=en&gopayMode=deeplink



Snap.js main functions


Including Snap.js on your frontend will expose snap object as global JS object accessible with window.snap. These are some main functions that you can access from your frontend codes:

  • window.snap.pay('SNAP_TRANSACTION_TOKEN', options): Will open payment page for that specific Snap Token, which is tied to specific Order ID. Also useful if you want to re-open that same payment page again e.g. when you allow another attempt of payment for that same Order ID, in case of closed earlier. Second parameter is optional options object explained further here.
  • window.snap.hide(): Will close the Snap payment page popup. Useful if you want to close the payment page from customers, e.g. when you/customers want to cancel the payment.

For more details, refer to Snap Docs.




JavaScript Callback


Snap.js supports callbacks. It can be used to trigger your custom JavaScript implementation on each event. The available callbacks are given below.

  • onSuccess: Function that will be triggered when payment is successful.
  • onPending: Function that will be triggered when payment is pending, which is for payment that requires further customer action, such as bank transfer / VA, or waiting for 3DS/OTP process*.
  • onError: Function that will be triggered when there is a payment failure after several attempts.
  • onClose: Function that will be triggered when customer has closed the Snap popup.

Example of the Snap.js callback option usage while calling window.snap.pay(...) is given below. This parameter is used during Snap frontend implementation.


window.snap.pay('SNAP_TRANSACTION_TOKEN', {
  onSuccess: function(result){
    /* You may add your own implementation here */
    alert("payment success!"); console.log(result);
  },
  onPending: function(result){
    /* You may add your own implementation here */
    alert("wating your payment!"); console.log(result);
  },
  onError: function(result){
    /* You may add your own implementation here */
    alert("payment failed!"); console.log(result);
  },
  onClose: function(){
    /* You may add your own implementation here */
    alert('you closed the popup without finishing the payment');
  }
})

For more details on Snap JS callback's result JSON properties & the samples, refer to this section of Snap Docs.


🚧

Specific if the payment method is Credit Card & processed via 3DS 2 (when the acquiring bank and the MID support), there's small possibility of the transaction is still waiting for the card's 3DS provider to process/verify it, which then Snap will trigger onPending callback instead of onSuccess. To handle the payment success update, as usual you should handle HTTP Notification.




Custom Finish URL


πŸ“˜

Supported Payment Method

This feature is only applicable for payment methods where customer will need to finish trx in Partner's payment page such as Internet Banking and BNPL.

Except for Kredivo, you can specify the finish URL either via dashboard or API request. Kredivo's finish URL can only be specified via dashboard.


Use this feature if you want to set a custom finish URL for customers to be redirected to after generating a payment code or making a payment. By default, Snap will redirect the customer to Finish Redirect URL configured on Dashboard. But you can override that configuration by specifying callbacks.finish parameter. This will allow you to have specific redirect for each specific payment.

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "callbacks": {
    "finish": "https://tokoecommerce.com/my_custom_finish/?name=Customer01"
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "callbacks": {
    "finish": "https://tokoecommerce.com/my_custom_finish/?name=Customer01"
  }
}'



Use your own payment list / checkout page


On Snap payment selection screen, all available payments for the merchant are activated by default. Under some conditions, you may need to display only some of the payment methods available, or show your own payment list instead of using Snap Checkout's payment list. There are two ways to achieve this, which are given below.


A) Specify Payment Channel via Dashboard


You can configure Enable Payment with Snap Preference on Midtrans Dashboard. This will apply to all Snap transactions for the Merchant account.

  1. Login to your Midtrans Dashboard.
  2. Go to Settings - Snap Preferences - Payment Channels Tab
  3. Click [x] icon to disable payment channel.
  4. Click [+] icon To enable payment channel.
  5. Click Apply Recommended Sorting to use Midtrans's recommended sorting. Or drag/drop manually to sort payment channel.
  6. Click Save.


πŸ“˜

Note

The configuration that is set using this method will only be applied to Snap payment transaction that is being opened via Snap Popup method (frontend javascript implementation method with snap.js). If your implementation is via Snap Redirect mode, please use configuration on the next section.

πŸ‘

Apply Recommended Sorting

It is highly recommended to apply recommended sorting to sort your payment list presentment - Recommended Sorting will sort out your payment method based on popular payment methods which will help to increase your payment conversion rate.


B) Specify Payment Channel via API Request


πŸ“˜

Usecases

Popular usecases for specifying payment channel via API requests are as follow :

  • You maintain your own payment list and want to map each payment method to Snap checkout page containing said payment method
  • You integrate Snap to multiple website/app/usecases and want to differentiate the available payment method without having to create multiple Midtrans Merchant ID.

You can add and customize enabled_payments parameter. That will apply specifically for the transaction. If you only specify 1 payment method in the enabled_payments parameter, Snap Checkout will not show the payment list page, and go directly to respective payment method's flow instead.

Example of the JSON parameters used during backend API request step is given below.


...
"enabled_payments": [
    "credit_card",
    "gopay",
    "shopeepay",
    "permata_va",
    "bca_va",
    "bni_va",
    "bri_va",
    "echannel",
    "other_va",
    "Indomaret",
    "alfamart",
    "akulaku"
]
...
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "enabled_payments": [
    "credit_card",
    "gopay",
    "shopeepay",
    "permata_va",
    "bca_va",
    "bni_va",
    "bri_va",
    "echannel",
    "other_va",
    "Indomaret",
    "alfamart",
    "akulaku"
  ],
  "credit_card": {
    "secure": true
  },
  "customer_details": {
    "first_name": "Budi",
    "last_name": "Susanto",
    "email": "[email protected]",
    "phone": "+628123456789"
  }
}'

enabled_payments also support alias, which refers to a list of payment types. Adding an alias is the equivalent of adding all the payment types it refers to. Supported aliases:

  • bank_transfer = permata_va, bca_va, bni_va, bri_va, echannel
  • store = kioson, indomaret, alfamart.

Use of enabled_payments is shown in the sample CURL request shown below.


curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "enabled_payments": [
    "credit_card"
  ],
  "credit_card": {
    "secure": true
  }
}'

This code will display only the credit card payment method on Snap as shown below.





Custom Transaction Expiry


Custom Expiry feature enables you to set an expiry time of payment for each transaction. When the time elapses, customer will no longer be able to pay the transaction. There are two ways to configure expiry time, which are given below.


A) Custom Expiry via Dashboard

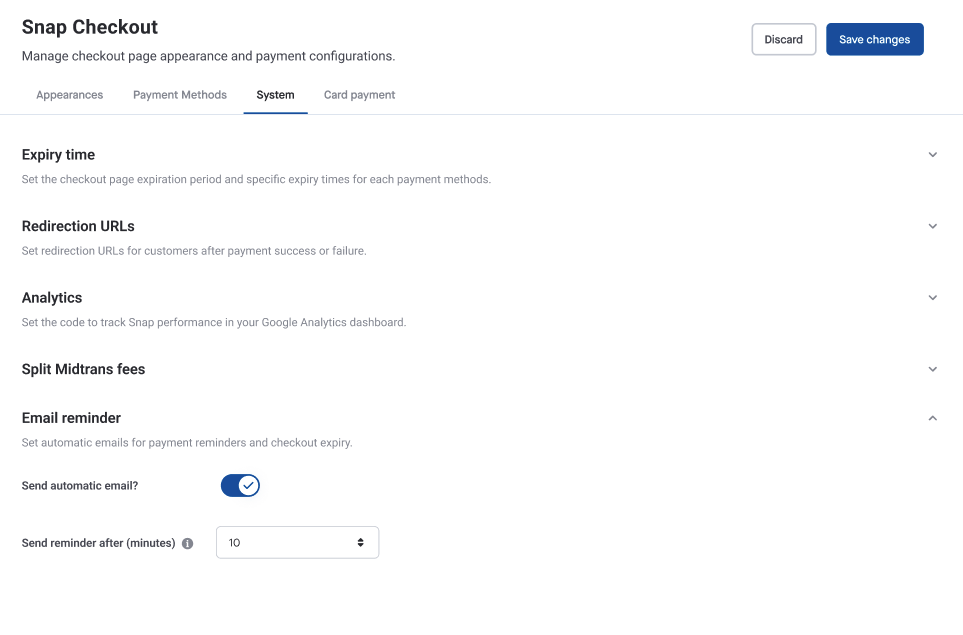

You can set custom expiry with Snap Preference on Midtrans Dashboard. This will apply to all Snap transactions for the Merchant account. You can customize both Snap page's expiry and individual Payment Method's expiry.

  1. Login to your MAP account.
  2. On the home page, go to Settings- Snap Preferences. Snap Preferences page is displayed.
  3. Select System Settings tab.
  4. Select Default check box.
  5. Select duration unit from the drop-down menu.
  6. Click Save.


B) Custom Expiry via API Request


This method is used to configure expiry time for a specific transaction.

Example of the JSON parameters used during backend API request step is given below.


...
  "expiry": {
    "start_time": "2020-04-13 18:11:08 +0700",
    "unit": "minutes",
    "duration": 180
  }
...
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "expiry": {
    "start_time": "2020-04-13 18:11:08 +0700",
    "unit": "minutes",
    "duration": 180
  }
}'
ParameterDescriptionTypeRequired
start_timeTimestamp in YYYY-MM-DD HH:MM:SS +0700.
If not specified, transaction time will be used as start time (when customer confirm payment channel). Time Zone is Western Indonesian Time (WIT).
String(255)Optional*
durationExpiry durationIntegerRequired
unitExpiry unit. Options: day, hour, minute (plural term also accepted).StringRequired

πŸ“˜

The start_time parameter is optional, but if you don’t include it, asynchronous payment methods like Bank Transfer, GoPay, etc. (payment methods that have pending status) will start the expiry duration only when the customer has proceeded to select & confirm payment on Snap payment screen. Thus the total expiry duration may not be as you were expecting due to Snap payment screen not immediately completed by customer. To avoid this, it is recommended to include the start_time on the API request.


C) Custom Page Expiry via API Request


Specify during Snap token creation via API request. Page expiry is optional.


Request Body (JSON Parameters)

...
"page_expiry": {
    "duration": 3,
    "unit": "hours"
}
...
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "page_expiry": {
    "duration": 3,
    "unit": "hours"
  }
}'
ParameterDescriptionTypeRequired
durationPage expiry duration in numbersIntegerRequired
unitExpiry unit. Options: day, hour, minute (plural terms also accepted).StringRequired



Custom Fields


Custom fields allow you to send your own (custom) data to Snap API, and then it will be sent back from Midtrans to your backend on HTTP notification. It will be displayed on Dashboard under the order detail.

Example of the JSON parameters used during backend API request step is given below.


...
  "custom_field1": "this is custom text defined by merchant",
  "custom_field2": "order come from web",
  "custom_field3": "customer selected blue color variant"
...
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 13000
  },
  "custom_field1": "this is custom text defined by merchant",
  "custom_field2": "order come from web",
  "custom_field3": "customer selected blue color variant"
}'
ParameterDescriptionTypeRequired
custom_field1Custom field 1 for custom parameter from merchant.
Input any information you want.
String(255)Optional
custom_field2Custom field 2 for custom parameter from merchant.
Input any data you want.
String(255)Optional
custom_field3Custom field 3 for custom parameter from merchant.
Input any data you want.
String(255)Optional



Customize Themes


You can customize Snap's look and feel to make the checkout UI blend more seamlessly to your web/app's page. Brand name, header color, logo, and page language can be customized.

If you're using Snap Pop Up, go to Snap Preference > Theme and Logo to manage the configurations.

If you're using Snap Redirection, go to VT-Web Preference to manage the configurations.




Credit Card


3 Domain Secure (3DS)


Three Domain Secure (3DS) feature can be enabled/disabled for specific transactions on Snap. By default you should always enable 3DS whenever possible, to prevent unnecessary security and chargeback risks. Understand the risks in disabling 3DS. To disable 3DS for specific business needs, you require agreement and approval. Consult your Midtrans's Sales PIC or Support team to allow disabling 3DS.

  • To enable 3DS, set the secure value to true.
  • To disable 3DS, set the secure value to false.

Example of the JSON parameters used during backend API request step is given below.


...
  "credit_card": {
    "secure": true
  }
...
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true
  }
}'



Save Card for Seamless Subsequent Payments


You can allow customer to save their card credentials within Snap payment page, for easier and faster future transactions. Card credentials will be saved securely on Midtrans side, and will not require merchant to manage the card data.

Merchant will only need to store and associate each unique customer with unique user_id defined by merchant.

  • Add "save_card" : true and user_id

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "save_card": true
  },
  "user_id": "budiSusanto201"
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "save_card": true
  },
  "user_id": "budiSusanto201"
}'

πŸ“˜

Note

During the first payment when a customer is intended to save their card, they must tick the β€œSave this card” check box on Snap payment page, in order for the card to be saved. This is to ensure that the customer explicitly gives consent that they are ok that their card will be securely saved.



Use the same user_id API params for that particular customer on future transactions. Their card will be previewed on Snap card payment page, on future transactions.



For more use cases, refer to One Click, Two Click, and Recurring Transaction.




Recurring / Subscription Card Transaction (Tokenization)


πŸ“˜

This feature is also known as Card Tokenization. Which simply means a method to replace sensitive information value (card credentials) with a token (a placeholder) value, but also allowing it to still be associated with the actual value. Generally to keep sensitive information safely kept within secure environments, but still accessible for authorized parties.


Snap can be utilized to initialize subscription or recurring payment flow. Note that:

  • You will require Core API to do the recurring charge.
  • The recurring charge should be scheduled & triggered by your (merchant's) system/backend.
  • Currently, recurring transaction supports only card transactions.

Please refer to the sequence diagram given below to understand the recommended flow.


Snap Recurring Sequence Diagram


Example of the JSON param for the first or initial transaction is given below. This param is used during backend API request step.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "save_card": true
  },
  "user_id": "budiSusanto201"
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "save_card": true
  },
  "user_id": "budiSusanto201"
}'

Then you will proceed with displaying Snap payment page as usual. After customer proceed with payment and result in successful first transaction, you will receive saved_token_id & saved_token_id_expired_at in the JSON of HTTP notification. saved_token_id is unique for each customer's card. Store this saved_token_id in your database and associate that card token to your customer.


❗️

Important

Be sure to store the card's saved_token_id_expired_at. When that date time has been surpassed, the card's saved_token_id will be no longer usable, it means the card is expired. In that case you will need to ask your customer to re-do the card saving process with their re-newed card.


Sample HTTP Notification with saved_token_id


{
  "saved_token_id":"481111xDUgxnnredRMAXuklkvAON1114",
  "saved_token_id_expired_at": "2020-12-31 07:00:00",
  "status_code": "200",
  "status_message": "Success, Credit Card transaction is successful",
  ...
}

When you want to charge that particular customer, you will need to proceed with Charge API request via Core API. The recurring transaction is non 3DS and will directly deduct customer's fund associated with the card.


πŸ“˜

Note

This feature requires special MID from acquiring bank, this utilize what bank usually call as "recurring MID". Which may means additional business agreement with the acquiring bank, you should consult Midtrans Activation team to activate this feature.


For more use cases, refer to One Click, Two Click, and Recurring Transaction.


Recurring / Subscription Transaction with Predefined Schedule


Note that the Recurring / Subscription mentioned above is relying on your system/backend to schedule and trigger the recurring charges. Additionally, Midtrans also support automatically charge recurring for you based on your specified schedule.

Follow the same implementation as mentioned above, to the point your system retrieved the saved_token_id. Then you can proceed with Core API's Recurring API feature here. To specify the schedule of when Midtrans should charge recurringly to your customer.


πŸ“˜

Note

This feature requires special MID from acquiring bank, this utilize what bank usually call as "recurring MID". Which may means additional business agreement with the acquiring bank, you should consult Midtrans Activation team to activate this feature.


This method also support GoPay payment method. Please contact Midtrans Activation Team or your Sales Representative before using this feature.




Routing Transactions to Specific Acquiring Bank


There are two ways to route transactions to specific acquiring bank, one is by specifying acquiring explicitly during create token step by adding bank parameter, another is to add a logic to determine which acquiring transactions will be routed to based on card properties, using the Bank Routing feature.


Specify acquiring explicitly


You can specify the preferred Acquiring Bank for specific Snap transaction. Transaction fund will be routed to that specific acquiring bank. Consult Midtrans Activation team to get information about the availability of the Acquiring Bank.

Specify the bank name inside the bank parameter.

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "bank": "bca"
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "bank": "bca"
  }
}'

Route based on card properties via Bank Routing feature


In create token request, you can also specify the routing logic based on card properties using Bank Routing feature. When specified, Snap will then route transactions to specified acquiring based on card BIN or card type. bank_routing must be set inside the credit_card parameter when creating a Snap token.

Example of the JSON parameters used during backend API request step is given below.


...
  "credit_card": {
    "bank_routing": {
      "bin": {
        "bni": ["48111111", "debit", "bca"],
        "maybank": ["5", "bca"]
      }
    },
    "bank": "mandiri"
  }
...
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "bank_routing": {
      "bin": {
        "bni": ["48111111", "debit", "bca"],
        "maybank": ["5", "bca"]
      }
    },
    "bank": "mandiri"
  }
}'

Under bin JSON parameter, merchant can specify the preferred routing logic with the following key-value JSON format:


KeyValue
String of card payment acquiring bank code. Possible values: bni, bri, bca, mandiri, mega, maybank, cimb. Make sure to only pass values of acquiring banks that are activated for your account - check in your business agreement on what acquiring banks are activated for your merchant account.Array of string of Card BIN , Card Type, and/or Card Issuing Bank. Explained in the table below.
Array Value KindDescriptionType
Card BINThe first 6-8 digit of credit card number. You can specify part of the BINs only e.g. "4", "481", Snap will them perform regex matching. For example, specifying "4" only will cause all Visa cards to be redirected to the specified acquiring.String
Card typePossible values : debit or credit. Midtrans will determine card type based on internal BIN database.String
Card Issuing bankIssuing bank codes, applicable only for Indonesian card issuing bank that are recognized by Midtrans BIN database. Supported values include bri/bni/bca/maybank/cimb/mandiri/mega/permata. Be aware however that there are some instances where bank code might not include the most updated BINs and that you agree to accept this risk if you choose to use it. If BIN accuracy is crucial, we highly recommend inputting the exact BINs instead.String

Format Summary:

"acquiring-bank-code" : [ Array of string of either Card BIN , Card Type, or Card Issuing Bank ]

You can specify key-value pair multiple time as needed, with that format. Check the provided JSON example above for a practical example.


πŸ“˜

Note

  1. If there are 2 valid acquiring bank codes specified for the same card issuing bank, then the acquiring bank will be taken from order of the bin object that you specify. E.g. if you specify the same Card BIN across multiple acquiring bank codes, the first acquiring bank code will be chosen.
  2. If a customer pay with a card which BIN is not specified in the bank_routing, such payment will then be routed based on the specified acquiring bank within the bank param, or randomized if no acquiring are specified in any of the logic within the create token request parameter.
  3. Ensure that specified acquiring bank code is active for your merchant account, otherwise transaction may fail.

In case there are some conflicting logics defined within the request that includes bank_routing, Snap will prioritize routing based on the following hierarchy :

  1. Whitelist/Blacklist bin
  2. Online installment routing logic (as specified in the installment param)
  3. bank_routing param
  4. bank param specified inside credit_card object



BIN Filter


BIN (Bank Identification Number) filter is a feature that allows the merchant to accept only Credit Cards within specific set of BIN numbers. It is useful for certain bank promo/discount payment by accepting only credit cards issued by that bank. BIN (Bank Identification Number) is the first 1-8 digits of a card number, which identifies the bank that issues the card. A bank generally has more than one BIN.

To use this feature, you need to accumulate the list of BIN that accepts the promotion or uses the issuing bank's name. This list of BIN or issuing bank name will then become a transaction parameter whitelist_bins. This transaction can only be performed exclusively by using the credit card that is included in the BIN list or BIN under the particular defined issuing bank.

Similarly, if you want to prevent a transaction from using a certain BIN properties instead, change the parameter name into blacklist_bins.

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "whitelist_bins": [
      "48111111",
      "41111111",
      "bni",
      "3"
    ],
    "blacklist_bins": [
      "5"
    ]
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "whitelist_bins": [
      "48111111",
      "41111111",
      "bni"
    ]
  }
}'

Accepted BIN values:


Array Value KindDescriptionType
Card BINThe first 6-8 digit of credit card number. You can specify part of the BINs only e.g. "4", "481", Snap will them perform regex matching. For example, specifying "4" only will cause all Visa cards to be redirected to the specified acquiring.String
Card Issuing bankIssuing bank codes, applicable only for Indonesian card issuing bank that are recognized by Midtrans BIN database. Supported values include bri/bni/bca/maybank/cimb/mandiri/mega/permata. Be aware however that there are some instances where bank code might not include the most updated BINs and that you agree to accept this risk if you choose to use it. If BIN accuracy is crucial, we highly recommend inputting the exact BINs instead.String

The sample Snap payment page with BIN Filter feature is displayed below.





Card Installment Payment


Online Installment


This is the type of installment where the Card Issuer and Acquiring Bank is the same entity. For example, if a customer makes an installment payment using BNI Card, then Acquiring Bank is also BNI.

For online installments, the bank will issue special MID for installment. This installment MID is used to automatically convert the transaction into installments. To activate the installment feature, you are required to have agreement with the bank. Please consult your Midtrans's Sales PIC or Support team for installment MID. If installment MID is available, merchant simply needs to add the installment parameter.


...
  "credit_card": {
    "secure": true,
    "installment": {
      // set to `true` to force customer pay with installment for this transaction
      // set to `false` to add option for customer to pay with regular fullpayment
      "required": true,
      "terms": {
        // input the desired bank & installment terms
        "<bank-name>": [ <installment terms as array of integers> ]
      }
    }
  }
...

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "installment": {
      "required": true,
      "terms": {
        "bca": [3,6,12],
        "bni": [3,6,12],
        "mandiri": [3,6,12],
        "cimb": [3,6,12],
        "bri": [3,6,12],
        "maybank": [3,6,12],
        "mega": [3,6,12]
      }
    }
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "installment": {
      "required": true,
      "terms": {
        "bca": [6,12],
        "bni": [6,12],
        "mandiri": [3,6,12]
      }
    }
  }
}'

The sample Snap payment page with online installment feature is displayed below.



πŸ“˜

Note

Installment term will show in the Snap payment page after the customer enters the installment-compatible credit card number. For testing this method, refer to Sandbox test card.


Offline Installment


Offline Installment is the type of payment where Card Issuing Bank used for making an installment payment and the Acquiring Bank need not be the same. For example, a customer makes an installment payment using BNI Card and the Acquiring Bank is Mandiri.

To allow installment feature with banks which do not issue Installment MID, merchant can use offline installment feature. With offline installment feature, the transaction will initially be charged in full amount and will be converted into installment later. To activate the installment feature, you are required to have agreement with the bank. Please consult Midtrans Activation Team for installment MID.

To use offline installment, you will need to add a param under installment object offline_bins and terms where you can specify the list of BINs that qualify for offline installment. Once you have set the BINs, Snap UI will automatically check if the card number inputted by customers is eligible for offline installment, if yes - Snap will then show the available terms for customer. Note that you can also configure this via dashboard for no code alternative.

If you want to enforce the transaction to use offline installment however, you can add the installment parameter with combination of whitelist_bins . The purpose of Whitelist BIN is to allow only certain acceptable cards to proceed with offline installment payment, based on the agreement between you and issuing banks.

Usually you will also need to add bank parameter to specify which card acquirer bank should be used for the offline installment payment, or you can also use the bank routing feature if you need to specify a custom bank routing logic based on BINs.


...
  "credit_card": {
    "secure": true,
    "installment": {
      // set to `true` to force customer pay with installment for this transaction
      // set to `false` to add option for customer to pay with regular fullpayment
      "required": true,
			"offline_bins" : [<card BINs as array of strings>],
      "terms": {
        // input the desired installment terms
        "offline": [ <installment terms as array of integers> ]
      }
    },
    "bank": <specify acquirer bank> // input the destination card acquirer bank that will be used
  }
...
...
  "credit_card": {
    "secure": true,
    "installment": {
      // set to `true` to force customer pay with installment for this transaction
      // set to `false` to add option for customer to pay with regular fullpayment
      "required": true,
      "terms": {
        // input the desired installment terms
        "offline": [ <installment terms as array of integers> ]
      }
    },
    "whitelist_bins": [ <card BINs as array of strings> ],
    "bank": <specify acquirer bank> // input the destination card acquirer bank that will be used
  }
...

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "installment": {
      "required": true,
      "terms": {
        "offline": [3,6,12]
      }
    },
   	  "offline_bins": [
      "481111",
      "410505"
    ],
    "bank": "mandiri"
  }
}
{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "installment": {
      "required": true,
      "terms": {
        "offline": [3,6,12]
      }
    },
    "whitelist_bins": [
      "481111",
      "410505"
    ],
    "bank": "mandiri"
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "installment": {
      "required": true,
      "terms": {
        "offline": [3,6,12]
      }
    },
      "offline_bins": [
      "481111",
      "410505"
    ],
    "bank": "mandiri"
  }
}'
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 120000
  },
  "credit_card": {
    "secure": true,
    "installment": {
      "required": true,
      "terms": {
        "offline": [3,6,12]
      }
    },
    "whitelist_bins": [
      "481111",
      "410505"
    ],
    "bank": "mandiri"
  }
}'

The sample Snap payment page with offline installment feature is displayed below.



Definition


ParameterDescription
requiredIf true, the customer must pay as installment for that specific transaction.
If false, the customer can choose to pay as installment or regular full payment for that specific transaction.
termsunder terms array, on online installment, you can specify the bank name
(For example- BNI, BCA, CIMB, Mandiri, and so on)
offline_binsDefine the qualified card BINs (bank identification number - first 6-8 digits of a card number) to use offline installment. If qualified, the option to choose using offline installment (in form of terms selection) will be available for users. Accepted BIN format include Card BIN numbers or Issuing bank code (see this section for examples.
whitelist_binsDefine the qualified card BINs (bank identification number - first 6-8 digits of a card number) to to enforce trx to use cards with BINs as specified here. Accepted BIN format include Card BIN numbers or Issuing bank code (see this section for examples.

❗️

When you use whitelist_bins to create a Snap transaction, it will be applied to all card transaction for that Snap transaction. It could means that you will not be able to mix offline installment with online installment or regular full payment into one Snap transaction. Read further recommendations here.


Add minimum amount to use installment validation


You can also specify the minimum amount to use installment - if customer checks out with basket size lower than the specified minimum amount, Snap will not show the installment options to customer. You can also configure this minimum amount settings via Snap Preference in your dashboard.

To use, add the param minimum_amount under the credit_card object and specify the minimum amount for each online installment bank or for offline installments.


{
  "transaction_details": {
    "order_id": "ORDER-101",
    "gross_amount": 10000
  },
  "credit_card": {
    "installment": {
      "required": false,
      "terms": {
        "bni": [3, 6, 12],
      },
      "minimum_amount": {
        "bni": 100000,
			  "offline" : 50000
      }
    }
  }
}

Configuring Installment via Snap Preference


You can also configure Installment settings via Snap Preference - the tab 'Credit Card Payment Settings' will appear in your Snap Preference if you have card payment method active in your Midtrans account. To activate card payment installment feature, contact your Sales PIC first or Midtrans support team for the required procedure.

Once card payment installment feature is activated, you can specify the config either via API request or via Snap Preference.


Installment Settings in Snap Preference

Installment Settings in Snap Preference


You can configure various Installment settings here, including :

FeatureDescriptionRequired
Require customers to use installmentIf toggled active, Snap will force customers to use Installment in order to be able to proceed paying in Snap page. If toggled inactive, customer can still opt to pay using full payment.Optional
Online/Offline installment toggleToggle active in order to set up various settings pertaining to online/offline installment, e.g. terms and minimum amountRequired
BankCheck to activate which online installment to support. Banks shown up in here are based on what online installment bank MID are activated in your account.Required
TermsCheck to enable the possible installment terms that you want to offer to customer - this will affect the installment terms dropdown options shown in Snap. Terms shown up in here are based on what terms configured to your bank installment MID activated in your account.Required
Minimum amountSet the minimum amount for your customer to qualify to use installment. If the final amount prior to charge is lower than the configured minimum amount, customer will not be able to proceed to pay with installment.Optional
BIN validation (offline installment only)Define the qualified card BINs (bank identification number - first 6-8 digits of a card number) to use offline installment. If qualified, the option to choose using offline installment (in form of terms selection) will be available for users. Accepted BIN format include Card BIN numbers or Issuing bank code (see this section for examples.Optional

πŸ“˜

  • Do note that it might take up to 5 minutes to the configuration setup here to reflect in your Snap checkout page.
  • If you specify installment config via both Snap Preference and when creating Snap Token, specification passed when creating Snap Token will be prioritized.



Pre-Authorization Payment


Pre-authorization feature means customer's fund will not be directly deducted after transaction, but its amount/limit will be temporary reserved (blocked). Then you can initiate "capture" action later via Core API. By default, if there is no "capture" action for the transaction for 7 days, reserved fund will be released after 7 days.

To use this feature, you need to add "type": "authorize" parameter.

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "type": "authorize"
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "credit_card": {
    "secure": true,
    "type": "authorize"
  }
}'



E-Wallet


Redirect Customer From Gojek App (GoPay)


After completing payment using GoPay payment method, by default, the customer will remain on Gojek app. They need to manually close Gojek app to switch back to merchant website or application. The gopay.callback_url parameter will allow customers to be automatically redirected from the Gojek app to the merchant website/application.

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "gopay": {
    "enable_callback": true,
    "callback_url": "https://tokoecommerce.com/gopay_finish"
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "gopay": {
    "enable_callback": true,
    "callback_url": "https://tokoecommerce.com/gopay_finish"
  }
}'

You can input callback_url value with http/https URL protocol for website, or deeplink protocol for mobile App. For example, you can specify deeplink to your app: "callback_url": "tokoecommerce://gopay_finish/"


πŸ“˜

The final redirect URL will be appended with query parameter like ?order_id=xxx&result=xxx.


For example the final redirect URL might look like this:


https://tokoecommerce.com/gopay_finish/?order_id=CustOrder-102123123&result=success
Query ParameterDescriptionType
order_idOrder ID sent on the Charge Request.String
resultResult of the transaction to decide what kind of page to show to customer. Possible values: success or failure.String

πŸ“˜

Note

gopay.callback_url will only affect customer who pays with deeplink mode. Customer who pays with QR scan mode, will be redirected to Snap finish redirect URL, which you can specify here.


You could utilize those information to display custom message to your customer on your finish URL.




Force Deeplink/QRIS Regardless of Screensize


Snap payment screen by default will automatically detect customer device being used for transaction. If the device is detected as a mobile device, Snap will use deeplink mode to redirect customer to Gojek/Shopeepay app (if installed on the device). If the device is detected as a non mobile device, Snap will use QR mode to display QR Code for customer to be paid from their mobile device.

You can specify options uiMode on Snap.js to force Snap to use QR or deeplink as specified.


OptionDescriptionTypeRequired
uiModeChoose the UI mode for GoPay/Shopeepay.
Supported values are deeplink, qr, and auto. Set to auto by default.
StringOptional

Example of the Snap.js callback option usage (this parameter is used during Snap frontend implementation), while calling window.snap.pay(...) is given below.


window.snap.pay('SNAP_TRANSACTION_TOKEN', {
  uiMode: "deeplink"
})

Snap Redirect Mode


If you are using Snap Redirect Mode, you can append options as Query parameter ?gopayMode=deeplink at the end of the Snap redirect_url, which for example the final result url as shown below.


https://app.sandbox.midtrans.com/snap/v2/vtweb/cf9534e3-ddf7-43f9-a1b7-5f618d2d1c96?gopayMode=deeplink

For more details, refer to GoPay.




GoPay Account Linking / Tokenization


Snap also supports payment with GoPay where your customer can account their GoPay account to merchant's Snap payment page - subsequent payment can then be made without having to redirect customer to GoPay app.

You will need to request for this feature activation via Support, or reach out to your Midtrans's PIC.

For further details on how to use this feature, check out the API references here.



Bank Transfer / VA


Specify VA Number


By default Midtrans will randomize VA number used for bank transfer transaction. In some cases, you might want to specify/customize VA Number for Bank Transfer payment channels. You can do that with the following parameters.

Example of the JSON parameter used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "bca_va": {
    "va_number": "12345678901",
    "sub_company_code": "00000" //NOTE: Don't send this field unless BCA give you sub company code
  },
  "bni_va": {
    "va_number": "12345678"
  },
  "bri_va": {
    "va_number": "12345678"
  },
  "permata_va": {
    "va_number": "1234567890"
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "bca_va": {
    "va_number": "12345678901",
    "sub_company_code": "00000"
  },
  "bni_va": {
    "va_number": "12345678"
  },
  "bri_va": {
    "va_number": "12345678"
  },
  "permata_va": {
    "va_number": "1234567890"
  }
}'

Virtual Account number displayed to customer contains two parts. for example, in {91012}{12435678} , the company-prefix-number and the second part is a unique-VA-number. The second part is the part that can be customized.


πŸ“˜

  • Only digits are allowed.
  • Different banks have different specifications on their custom VA numbers. Please see the documentation of the respective banks. Note: for Permata, only B2B VA type support custom VA numbers.
  • If the number provided is already utilized for another order, then a different unique number will be used instead.
  • If the number provided is longer than required, then the unnecessary digits in the end will be trimmed.
  • If the number provided is shorter than required, then the number will be prefixed with zeros.

ParameterDescriptionTypeRequired
BCA va_numberLength should be within 1 to 11.StringOptional
BCA sub_company_codeBCA sub company code directed for this transactions.
NOTE: Don't use it if you don't know.
StringOptional
Permata va_numberLength should be 10. Only supported for B2B VA type.StringOptional
BNI va_numberLength should be within 1 to 8.StringOptional

πŸ“˜

Note

In Production mode, your VA payment method might not by default support custom VA number as some might require additional agreement with bank partners . Please consult your Midtrans's Sales PIC or Support team for further information.




Specify VA Description


Some VA description and recipient name can be customized.

Example of the JSON param for the first or initial transaction is given below. This param is used during backend API request step.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "bca_va": {
    "free_text": {
      "inquiry": [
        {
          "en": "Invoice for Order 3123 - Toy Shop",
          "id": "Tagihan untuk Order 3123 - Toy Shop"
        }
      ],
      "payment": [
        {
          "en": "Pay Order 3123 - Toy Shop",
          "id": "Bayar Order 3123 - Toy Shop"
        }
      ]
    }
  },
  "permata_va": {
    "recipient_name": "Budi Susanto"
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "bca_va": {
    "free_text": {
      "inquiry": [
        {
          "en": "Invoice for Order 3123 - Toy Shop",
          "id": "Tagihan untuk Order 3123 - Toy Shop"
        }
      ],
      "payment": [
        {
          "en": "Pay Order 3123 - Toy Shop",
          "id": "Bayar Order 3123 - Toy Shop"
        }
      ]
    }
  },
  "permata_va": {
    "recipient_name": "Budi Susanto"
  }
}'

BCA Virtual Account


  • Inquiry free text is list of text that will be displayed on ATM (if supported) when customer attempts to check/enquire the VA number.
  • Payment free text is list of text that will be displayed on ATM (if supported) when customer attempts to pay the VA number.

BCA VA Free Text Array:

ParameterDescriptionTypeRequired
inquiryMax item for array is 10Array of FreeTextItemOptional
paymentMax item for array is 10Array of FreeTextItemOptional

BCA VA Free Text Item:

ParameterDescriptionTypeRequired
enSize should not exceed 50 characters.StringRequired
idSize should not exceed 50 characters.StringRequired

Permata Virtual Account

ParameterDescriptionTypeRequired
recipient_nameRecipient name shown on the on the bank’s payment prompt.
It is shown as 20 character uppercase string.
Anything over 20 characters will be truncated. NOTE: Default is merchant name.
StringOptional



Convenience Store


Specify Alfamart Free Text


The text printed on Alfamart receipt can be customized.

Example of the JSON parameters used during backend API request step is given below.


{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "cstore": {
    "alfamart_free_text_1" : "Thanks for shopping with Toy Store!",
    "alfamart_free_text_2" : "Visit our site at toystore.com",
    "alfamart_free_text_3" : "Invite your friend and get discount."
  }
}
curl -X POST \
  https://app.sandbox.midtrans.com/snap/v1/transactions \
  -H 'Accept: application/json'\
  -H 'Authorization: Basic U0ItTWlkLXNlcnZlci1UT3ExYTJBVnVpeWhoT2p2ZnMzVV7LZU87' \
  -H 'Content-Type: application/json' \
  -d '{
  "transaction_details": {
    "order_id": "CustOrder-102",
    "gross_amount": 9000
  },
  "cstore": {
    "alfamart_free_text_1" : "Thanks for shopping with Toy Store!",
    "alfamart_free_text_2" : "Visit our site at toystore.com",
    "alfamart_free_text_3" : "Invite your friend and get discount."
  }
}'
ParameterDescriptionTypeRequired
alfamart_free_text_1First row of printed receipt descriptionString(40)Optional
alfamart_free_text_2Second row of printed receipt descriptionString(40)Optional
alfamart_free_text_3Third row of printed receipt descriptionString(40)Optional



Consideration and Limitation

There are a few limitations to consider while using Midtrans API. These limitations are given below.


Maximum Request Size Limit

Midtrans API allows maximum size of 16kb per request (~16000 total characters). Please try to keep it under the limit to avoid request failures.


πŸ“˜

Tip

Limit the number of item_details from your request, or group it into fewer item_details.


Snap Token Expiry Time

The default lifetime for regular Snap transaction, Snap token and also the redirect_url, is 24 hours. It can be customized. To customize Snap token and redirect_url, refer to Custom Expiry section.

Within the set time limit, the payment page is available for customer to proceed payment. After the limit exceeds, it will show that the payment page is no longer available.


Allowing Customer to Re-pay The Same Order

If your customer journey allow customer to close the payment page, and you want to allow customer to retry payment for that same order, you can follow this tips. When you sent request to Snap API and received Snap Token, you can keep/store that Snap Token associated with your Order ID. You can re-call window.snap.pay(SNAP_TRANSACTION_TOKEN') again on frontend with that same Snap Token to open the payment page popup, as long as it is not expired.

Alternatively if you prefer to create another Snap Token, you can follow the next section.


Re-creating Snap Token for Particular Order

At the state of customer have not chosen/proceed with any payment method within the Snap payment page, you can still re-initiate create Snap transaction using the same Order ID, since the Order ID is not yet utilized. New Snap token & url will be generated, and the older token & url will no longer be valid.

But that will no longer work if the customer has proceeded to choose/confirm to pay with certain payment methods, the status may have changed to pending. This also applies to when the customer has successfully paid the transaction. You will get API error message transaction_details.order_id sudah digunakan. This is to prevent duplication of payment order id on Midtrans side.

To avoid Order ID duplication, you can also change your implementation logic to allow one Order ID on your system to have-many payment Order ID on Midtrans (one-to-many relationship). e.g. for Order ID: web-order-321 your system can send request to Snap API with timestamp suffix on Order ID param like web-order-321-{$timestamp}. So that you can have many Snap Token recreated for that one particular order.


Note on Card Transaction Expire Notification

Card transaction payment status will become pending once it is proceeded into 3DS/OTP phase. If the transaction is abandoned or not completed within 10-15 minutes, its status will become expire. For more details please refer here.


Multiple Payment Attempts

Snap is designed to maximize conversion rate of customer payment, it has built-in behavior:

  • In which 1 Snap order-id is allowed to be retried multiple times by the customer as long as it is not yet finally paid or expired.

Example scenario:

  • Customer attempted to pay a Snap Order ID using card payment, then his card declined 2x.
  • Then he choose another payment method, Akulaku, in which he got 1x another declined payment.
  • Then finally he chose another payment method, Gopay, in which his payment is successfully accepted.
  • In summary: 3x deny attempts, 1x final success attempt.

Thus may result in:

  • On Midtrans dashboard you may see for 1 Snap Order ID, it can have multiple attempts recorded.
    • In the example scenario above, you will see 2x denied card transactions + 1x denied Akulaku transactions + finally 1x successful Gopay transactions. This is normal as long as there are only 1 successful transaction for 1 Order ID. It is expected that the multiple failed transactions are also recorded.
  • Your backend/system may receive multiple webhook/HTTP Notifications of transaction status for 1 Snap order ID, according to the status of each unique attempts.
    • In the example scenario above, your system will get 2x denied card transactions notif + 1x denied Akulaku transactions notif + finally 1x successful Gopay transactions notif. This is normal as long as there are only 1 successful transaction for 1 Order ID. It is expected that the multiple failed transaction notifications are also triggered.

πŸ“˜

Tips

You should implement your backend/system to allow early failed payment attempts & eventually accept notification of payment success.


Retrieving e-Wallet & QRIS Deeplink/QR URL

For GoPay, ShopeePay, and QRIS transactions made within Snap payment UI, currently it's only possible to programmatically retrieve the actions[].url (of the payment deeplink/QR url) via Core API.

You can alternatively store the Snap payment token (or redirect_url), and use it to re-display the Snap payment UI to the customer, so the GoPay, ShopeePay and QRIS payment page will be re-displayed according to the customer's session.


QRIS Related Behavior

This behavior is applicable to Snap as per changes introduced on 12 September 2022 in order to provide clearer information on the payment source.

Background condition:

  • When you enable gopay (or other QRIS compatible e-Wallet methods like shopeepay) payment method on Snap, by default Snap UI (whenever possible) will automatically decide and show two possible scenario for customer to pay:
    • A) If the customer is detected using mobile device, App Redirect payment flow will be presented.
    • B) If the customer is detected using Desktop/PC, QRIS Scan payment flow will be presented.

Please note the following behavior:

  • Depending on which method the customer pay with (A or B), for each payment attempts:
    • In scenario A: Midtrans will mark the payment_type of the transaction as gopay (or the e-Wallet payment method chosen).
    • In scenario B: Midtrans will mark the payment_type of the transaction as qris.
  • This will also impact the following:
    • JSON fields sent on Webhook/HTTP Notification of the payment status.
    • Get Status API response.
    • The Payment Type displayed on Midtrans Dashboard, and when you download transactions.
  • The JSON fields format (returned on Webhook/HTTP Notifications & Get Status API response) is different between "payment_type": "qris" and "payment_type": "gopay". Refer to the notification example section for details.

Compared to previous behavior before this change, it was:

  • Regardless of scenario A or B, Midtrans will record it as gopay (or the e-Wallet payment method chosen).

Recommended action for merchant side:

  • Please ensure that your system’s implementation can handle this behavior without breaking your system & its payment flow. Especially on the following parts (if applicable):
    • Your Notifications Handler implementation logic.
    • Get Status API implementation logic.
    • Reconciliation implementation logic.

πŸ“˜

Tips

  • In terms of payment status, there will be no difference between the mentioned payment_type. Success status will still be settlement, unpaid will still be expire, waiting will still be pending, etc. So it will be safe for you to use the same logic (no changes) to check the payment status.
  • It will also generally support the same command such as refund, expire, etc.
  • The change in payment_type will not affect payment status itself.
  • If it helps make your implementation transition easier, you can disregard the payment_type differences or, internally consider both gopay and qris payment_type to be one, just like previously.

Note on Core API Get Status

When a transaction is created on Snap API, it does not immediately assign any payment status on Core API's Get Status response.

Considering this, you may get 404 or Payment Not Found response upon calling Core API get-status even if the payment page is activated on Snap API.

This condition may happen when customer may not have chosen/proceed with any payment method within the Snap payment page (For example, idling or abandoning the Snap payment page). After customer chooses and proceeds with a payment method, the transaction status will be assigned. It will be available on Core API Get Status response. The possible status is as defined in the table above.


Content Security Policy (CSP) Whitelist

If you are using Content Security Policy (CSP) on your payment web page, please whitelist the domains/URLs given below. This is required by the Snap.js to work properly from within your payment web page.

cloudfront.net
*.midtrans.com
*.veritrans.co.id
*.mixpanel.com
*.google-analytics.com

Please whitelist the above domains/URLs in your CSP header/rule, to ensure proper working of Snap.js.


Snap Popup in an IFrame

Avoid displaying Snap payment popup within an iframe from your main checkout page. As it may cause unexpected results (known so far):

  • Snap UI size may not perfectly fit the size of the browser/device.
    • Snap automatically tries to fit to the webpage’s size, if you put Snap within an iframe, it tries to fit to the iframe size instead. Thus it is not recommended. If you insist on doing it with iframe, you can try to resize the iframe size to fit the main webpage’s.
  • Payment methods that require redirect to payment provider's website/app may not work (e.g. Gopay, ShopeePay, etc.).
    • This is mainly because of Web Browser's security limitations, to avoid spam and unwanted pop-up most of modern web browser by default will try to block redirection coming from cross-domain iframe.

We always recommend to follow the recommended Snap integration:


Documentations

Browse our Snap API References.
