GoPay Media Kit
To have a consistent and standardized GoPay branding across platform, we highly recommend merchants to refer to our media kit. Please refer to this page https://gopay.co.id/media-kit to access our brand guideline and image bank.

GoPay is an E-Wallet . Users can pay using the Gojek app, GoPay app or any QRIS compatible app. The user flow is different for web browser (on a computer or a tablet) and mobile phone:

QRIS Code - This is the user flow on a web browser (on a computer or a tablet). User is shown a QRIS code and asked to scan using any QRIS compatible app, such as Gojek app or GoPay app. (Sequence Diagram for QR Code)
Deeplink - This is the user flow on a mobile device. User gets redirected to the GoPay app to finish payment. (Sequence Diagram Deeplink). For more details related to redirection to GoPay app, please read this article.

By default, GoPay Deeplink and QRIS's transaction expiry is 15 minutes (min 20s, max 7 days). For custom expiry, please refer to this section.

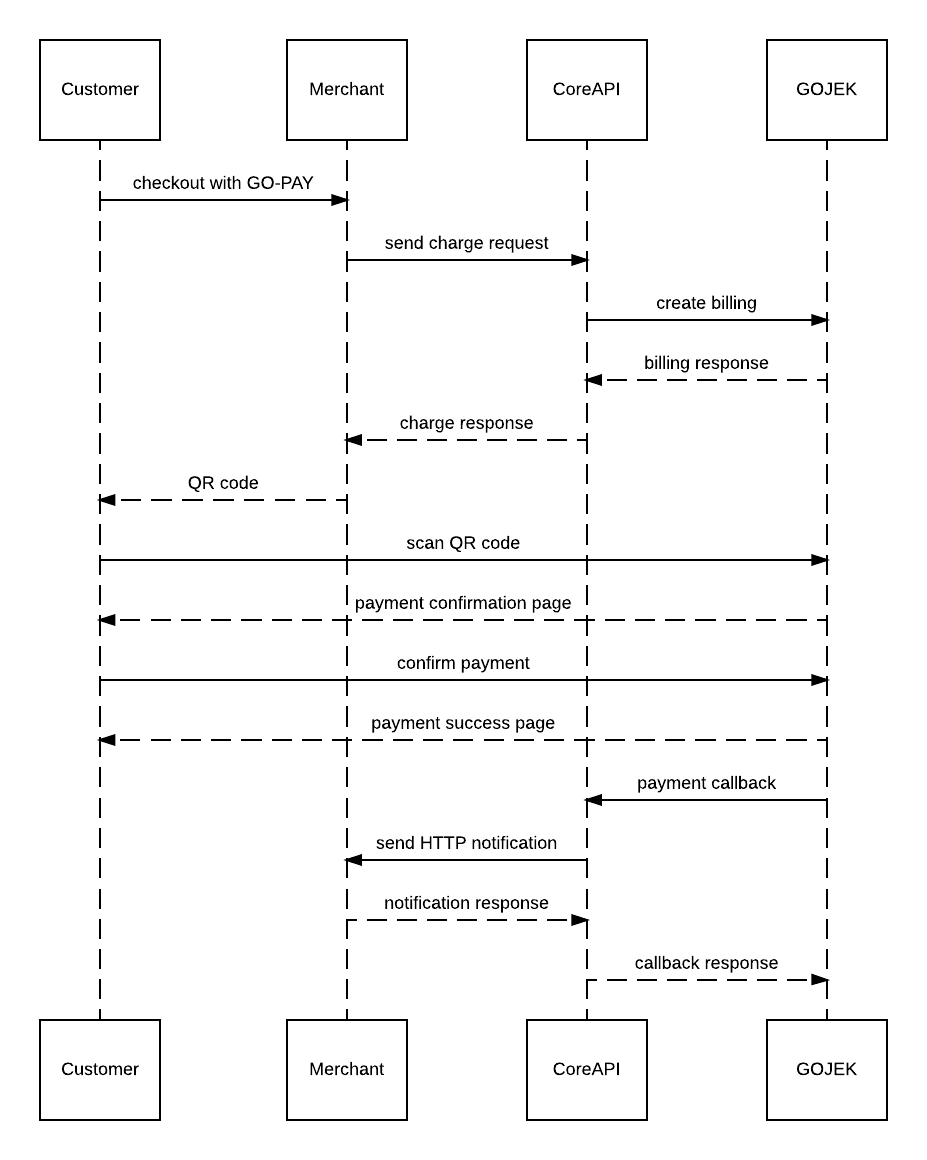

Sequence Diagram for QR Code
Sequence Diagram for Deeplink

The steps to integrate with GoPay are as follows:

Create payment instructions for users (see example below).
Send the charge API request to Midtrans.
Alter payment flow depending on the device used:

On a computer or tablet: Show QRIS code image (on a computer or a tablet).
On a mobile device: Redirect user with the deeplink URL that given from the response.

Handle notifications from Midtrans.

📘
Instruction Example For QRIS Code

Tap Pay using GoPay.

Click Pay Now. QRIS code will be displayed.

Open Gojek app or GoPay app on your mobile phone.

Scan the QRIS code.

Verify your payment details and then click Pay.

Verify your Security PIN and finish your transaction.

📘
Instruction Example For Deeplink

Tap Pay using GoPay.

You will be redirected to GoPay App.

Verify your payment details and then click Pay.

Verify your Security PIN and finish your transaction.

In summary:

Send a Charge API request with the details of the transaction such as payment_type:gopay, transaction_details, item_details, and customer_details. Successful request returns a deeplink redirect URL or QR code image URL.

GoPay Charge API Request

{
  "payment_type": "gopay",
  "transaction_details": {
    "order_id": "order03",
    "gross_amount": 275000
  },
  "item_details": [
    {
      "id": "id1",
      "price": 275000,
      "quantity": 1,
      "name": "Bluedio H+ Turbine Headphone with Bluetooth 4.1 -"
    }
  ],
  "customer_details": {
    "first_name": "Budi",
    "last_name": "Utomo",
    "email": "budi.utomo@midtrans.com",
    "phone": "081223323423"
  },
  "gopay": {
    "enable_callback": true,
    "callback_url": "someapps://callback"
  }
}

JSON Attribute	Description	Type	Required
payment_type	Set GoPay payment method. Value: `gopay`.	String	Required
transaction_details	The details of the specific transaction such as `order_id` and `gross_amount`.	Object	Required
item_details	Details of the item(s) purchased by the customer.	Object	Optional
customer_details	Details of the customer.	Object	Optional
gopay	Charge details using GoPay.	Object	Required

GoPay Charge Response and Notifications

{
	"status_code": "201",
	"status_message": "GO-PAY billing created",
	"transaction_id": "e48447d1-cfa9-4b02-b163-2e915d4417ac",
	"order_id": "SAMPLE-ORDER-ID-01",
	"gross_amount": "10000.00",
	"payment_type": "gopay",
	"transaction_time": "2017-10-04 12:00:00",
	"transaction_status": "pending",
	"actions": [{
			"name": "generate-qr-code",
			"method": "GET",
			"url": "https://api.midtrans.com/v2/gopay/e48447d1-cfa9-4b02-b163-2e915d4417ac/qr-code"
  	},
		{
			"name": "generate-qr-code-v2",
			"method": "GET",
			"url": "https://api.midtrans.com//v4/qris/gopay/A120250818053027lQ9S1FXLIHID/qr-code"
		},
    {
			"name": "deeplink-redirect",
			"method": "GET",
			"url": "gojek://gopay/merchanttransfer?tref=1509110800474199656LMVO&amount=10000&activity=GP:RR&callback_url=someapps://callback?order_id=SAMPLE-ORDER-ID-01"
		},
		{
			"name": "get-status",
			"method": "GET",
			"url": "https://api.midtrans.com/v2/e48447d1-cfa9-4b02-b163-2e915d4417ac/status"
		},
		{
			"name": "cancel",
			"method": "POST",
			"url": "https://api.midtrans.com/v2/e48447d1-cfa9-4b02-b163-2e915d4417ac/cancel",
			"fields": []
		}
	],
	"channel_response_code": "200",
	"channel_response_message": "Success",
  "currency": "IDR"
}

{
  "status_code": "201",
  "status_message": "midtrans payment notification",
  "transaction_id": "1c28dbbb-8596-48e4-85d7-9f1382db8a1f",
  "order_id": "order03",
  "gross_amount": "275000.00",
  "payment_type": "gopay",
  "transaction_time": "2016-06-19 15:50:12",
  "transaction_status": "pending",
  "signature_key": "40747f7f8f489c423c8ed72879ca8cb28dcd0c03fc9a192138667c4588f91486ae46094a6695d9fddbce0abab8055fd483b65ecf59e3c43d4a22cc024326993a"
}

{
  "status_code": "200",
  "status_message": "midtrans payment notification",
  "transaction_id": "1c28dbbb-8596-48e4-85d7-9f1382db8a1f",
  "order_id": "order03",
  "gross_amount": "275000.00",
  "payment_type": "gopay",
  "payment_option_type": "GOPAY_WALLET",
  "transaction_time": "2016-06-19 15:54:42",
  "transaction_status": "settlement",
  "signature_key": "973d175e6368ad844b5817882489e6b22934d796a41a0573c066b1e64532dc0001087b87d877a3eac37cba20a733e1305f5e62739e65ff501d5d33c5ac62530f"
}

"status_code": "202",
  "status_message": "midtrans payment notification",
  "transaction_id": "1c28dbbb-8596-48e4-85d7-9f1382db8a1f",
  "order_id": "order03",
  "gross_amount": "275000.00",
  "payment_type": "gopay",
  "transaction_time": "2016-06-20 15:50:12",
  "transaction_status": "expire",
  "signature_key": "53c6e2e3639a6b5c09b9103aa343f00cfd0168c6a69a2d4f2203bdc58072531ad7b340ea01725538996a7827c4ce091fb94d0aa70778a20c69d3f9991e0f65eb"
}

JSON Attribute	Description	Type
status_code	Status code of transaction charge result.	String
status_message	Description of transaction charge result.	String
transaction_id	Transaction ID given by Midtrans.	String
order_id	Order ID specified by you.	String
gross_amount	Total amount of transaction in IDR.	String
payment_type	Transaction payment method.	String
payment_option_type	Type of payment that is being used, possible values are GOPAY_WALLET, PAY_LATER, GO_CICIL, GOPAY_COINS (more possible values will be added once we launch more payment option on GoPay). Only available for GoPay payment type. Will be returned on Settlement, Refund and Partial Refund notification only.	String
transaction_time	Timestamp of transaction in ISO 8601 format. Time Zone: GMT+7.	String
transaction_status	Status of GoPay transaction. Possible values are `pending`, `settlement`, `expire`, `deny`.	String
actions	Actions which can be performed with this transaction. Use `generate-qr-code` action to render the QR code image (PNG format). Use `generate-qr-code-v2` action to render the QR code image with ASPI's border (PNG format, see reference on the callout below). Use `deeplink-redirect` action to redirect to Gojek apps.	Array(Object)
channel_response_code	Response code from payment channel provider.	String
channel_response_message	Response message from payment channel provider.	String
currency	ISO-4217 representation of three-letter alphabetic currency code. Value: `IDR`. Note: Currently only `IDR` is supported.	String
signature_key	Combination of parameters such as `order_id`, `status_code`, `gross_amount`, `server_key` to verify integrity of payload/response.	String

📘
Note
Possible error codes are 400, 401, 402, 406, 410

🇮🇩
Generating QR using ASPI's format
We are introducing a new method for merchants to generate QR codes. In the response’s actions array, we have added a new object containing a URL that merchants can use to generate a QR code in ASPI’s format. You can use the URL inside the new object named generate-qr-code-v2 to create the QR code.
Reference

Implementing GoPay Deeplink Callback

In addition to the standard mobile apps flow, you can implement deeplink callback to redirect customer back from GoPay to your app.

📘
Prerequisites
E-commerce needs to prepare a deeplink which accepts two query parameters.

Query Parameter	Description	Type
order_id	Order ID sent on the Charge Request.	String
result	Result of the transaction to decide what kind of page to show to customer. Possible values are `success` or `failure`.	String

🚧
Note
It is highly recommended to avoid using value passed on result to update status on backend. There is HTTP notification for this use case.

The steps to integrate with GoPay deeplink (Please look into the GoPay Charge API Request for sample implementation) are given below.

Set enable_callback parameter in the charge request to true.
Set callback_url with the deeplink URL redirecting to E-commerce apps (via API request / configure in Dashboard > Settings > Payments)
Handle redirection with above parameters.
